Dezhou Chuangyou precision Machinery Co., LTD
1. Overload rrotection
2. Adjustable torque
3. Reverse device: self-reversing without need for stopping and reversing the spindle, faster withdrawal
4. Simple operation
|

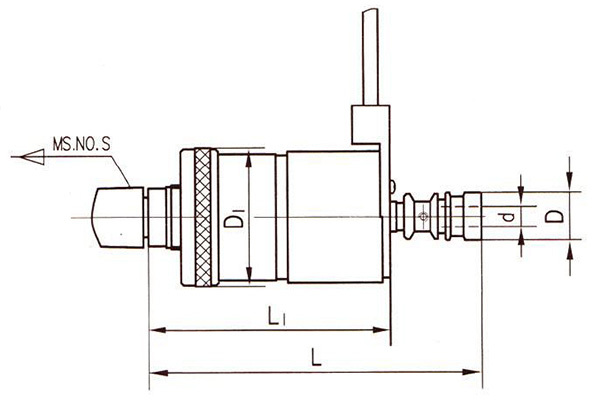

Order No. |
Tapping range |
d |
D |
D1 |
L |
11 |
MS.NO.S |
|
J467 |
M2-M7 |
2.5-6.5 |
23 |
55 |
135 |
95 |
MS2-JT33 MS3-JT33 |
|
J4612 |
M5-M12 |
3.5-10 |
28 |
75 |
164 |
114.5 |
MS3-JT16 MS3-JT16 |
|
j4620 |
M8-M20 |
6.0-14 |
38 |
90.5 |
205 |
135 |
MS3-JT20 MS3-JT20 |

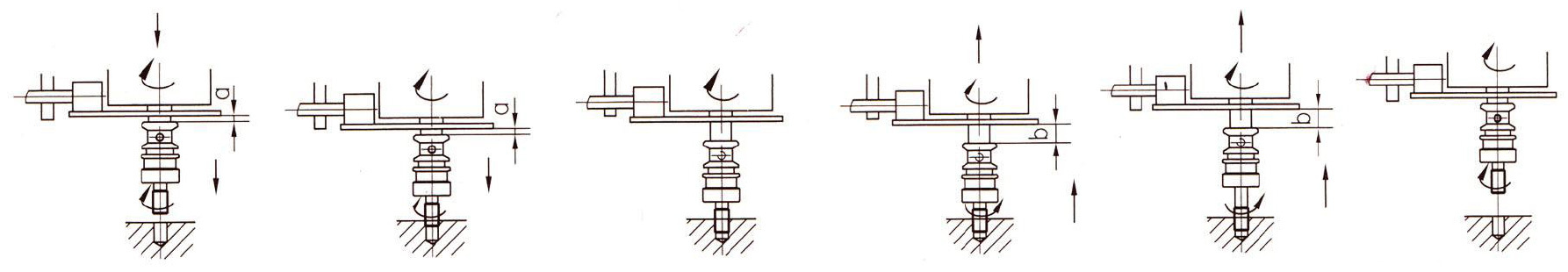

Operating figture

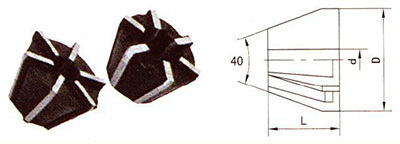

RUBBER FLEX COLLETS for reversible tapping chuck
|
OrderNo. |
D |
d |
L |
|
J467-1 |
15 |
2.5-4.2 |
11 |
|
J467-2 |
15 |
4.2-6.5 |
11 |
|
J4612-1 |
21 |
3.5-7.0 |
13 |
|
J4612-2 |
21 |
7.0-10 |
13 |
|
J4620-1 |
26.5 |
6.0-9.0 |
15 |
|
J4620-2 |
26.5 |
9.0-14 |
15 |
|
J4620-3 |
26.9 |
12.7-19.05 |
12 |
J4620-3 rubber flex collet is to be purchased specially.
Keywords:
J46 type reversible tapping collet body
