Order |

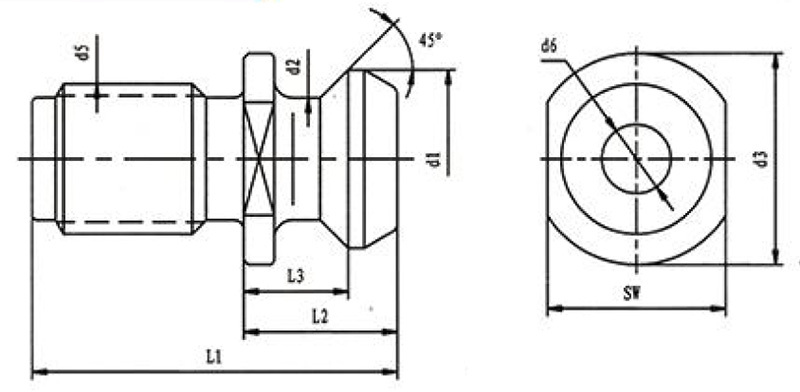

Type |
d1 |
d2 |
d3 |
d5 |
d6 |
L1 |
L2 |
L3 |
SW |
Weight (Kg) |
|
431U |
CAT40-A45°U |
18.8 |
12.4 |
23 |
5/8"-11UNC |
— |
38.1 |
16.2 |
11.2 |
19.05 |
0.04 |
|
431U/T |
CAT40-A45°U/T |
0.03 |
|||||||||
|
6 |
|||||||||||
|
Inch |
0.74 |
0.49 |
0.94 |
|
0.281 |
1.5 |
0.64 |
0.44 |
0.75 |
|
|
|
531U |
CAT50-A45°U |
28.9 |
20.8 |
36 |
1"-8UNC |
— |
58.4 |
25.4 |
17.7 |
31.75 |
0.17 |
|
531U/T |
CAT50-A45°U/T |
10 |
0.16 |
||||||||
|
Inch |
1.14 |
0.82 |
1.44 |
|
0.468 |
2.3 |
下 |
0.7 |
1.25 |
|
|
|
431 |
CAT40-A45° |
18.8 |
12.4 |
23.8 |
M16*2.0P |
— |
38.1 |
16.2 |
11.2 |
19.05 |
0.04 |
|
431/T |
CAT40-A45°/T |
7.1 |
0.03 |
||||||||
|
Inch |
0.74 |
0.49 |
0.94 |
|
0.281 |
1.5 |
0.64 |
0.44 |
0.75 |
|
|
|
531 |
CAT50-A45° |
28.9 |
20.8 |
36.5 |
M24*3.0P |
— |
58.4 |
25.4 |
17.7 |
31.75 |
0.17 |
|
531/T |
CAT50-A45°/T |
11.9 |
0.16 |
||||||||
|
Inch |
1.14 |
0.82 |
1.44 |
|
0.468 |
2.3 |
1 |
0.7 |
1.25 |
|
|
